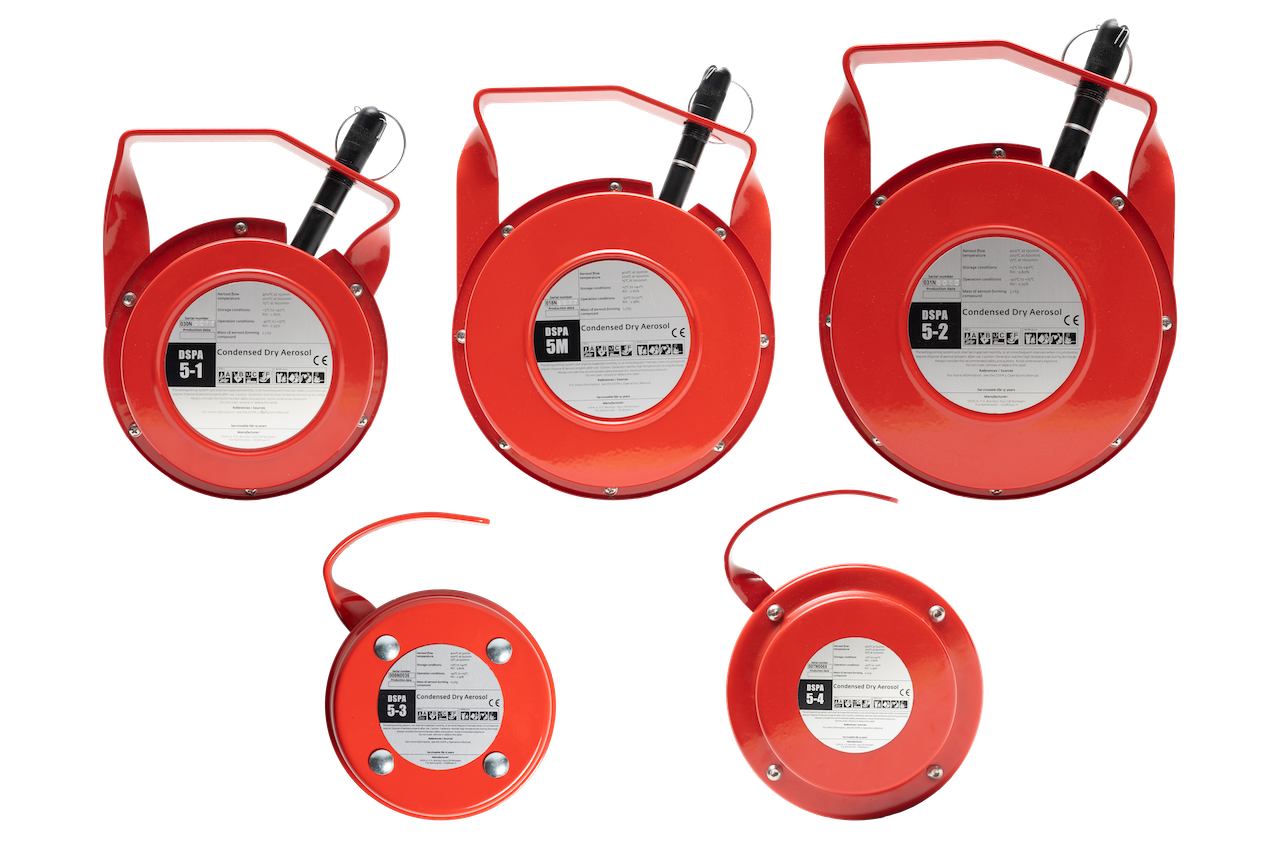

DSPA 5-SERIES AEROSOL GENERATOR

Properties

  • Exceptional effective non-toxic fire suppressing agent
  • Does not deplete oxygen levels
  • SNAP listing by EPA
  • Ecologically safe and environmentally friendly (O.D.P.=0, G.W.P.=0)
  • Is harmless to humans and animals
  • Does not cause any overpressure

Description

The portable DSPA 5-series aerosol generators can be used by fire fighters and professional first responders as a highly effective knock down tool against fires. The DSPA 5-series generators are non-pressurized and are deployed manually into a room or compartment that requires firefighting. After activation, an aerosol cloud is generated, which expands volumetrically, flooding the space and knocking down the flames. The DSPA 5-series generators are mainly designed to use on class A, B, C and F (K) fires.

Application

The DSPA 5-series generators are recommended for firefighting in buildings and other structures. It can be used in every stage fire, but its value is best displayed during fully developed fires or early deployment in any fire. The DSPA 5M generator is recommended for firefighting in marine applications and other situations where moisture and salt have their impact. It can be used in every fire stage, but its value is best displayed during fully developed fires.

No items found.
Model 5-1 5-2 5-3 5-4 5M
Dimensions 236 x 170 x 103,6 mm
9.29" x 6.69" x 4.08"
280 x 220 x 112,6 mm
11.0” x 8.66” x 4.43"
180 x 135 x 72 mm
7.1" x 5.3”x 2.8”
205 x 165 x 72 mm
8.01” x 6.5" x 2.83"
280 x 220 x 103 mm
11.0”x 8.66” x 4.05"
Part number 100030 100031 100006 10007 100018
Total weight 4,8 kg
10.6 lbs
6,0 kg
13.2 lbs
1,65 kg
3 lbs
2,1 kg
4.6 lbs
5,5 kg
12.1 lbs
Compound weight 2,3 kg 3,7 kg 0,3 kg 0,9 kg 3,3 kg
Volume coverage Up to 110m³
3900ft³
Up to 180m³
6300ft³
Up to 15m³
460 ft³
Up to 45m³
1400 ft³
Up to 150m³
5300ft³
Discharge time 25 sec 40 sec 20 sec 25 sec 35 sec
Activation, current Manual Screw-in starter with pin or cord
Operation conditions -40°C to 75°C/ -40°F to 167°F Up to 95% RH
Colour Standard RAL 3000, other colours upon request
