DSPA 11-5, 11-6 AEROSOL GENERATOR

Properties

  • Exceptional effective non-toxic fire extinguishing agent
  • Uniquely easy to install and Maintain
  • Tested as per EN 15276-1, NEN-ISO 15779, UL 2775 and BRL K23001
  • Approved by EPA for SNAP listing
  • Ecologically safe and environmentally friendly (O.D.P.=0, G.W.P.=0)
  • Very cost efficient

Description

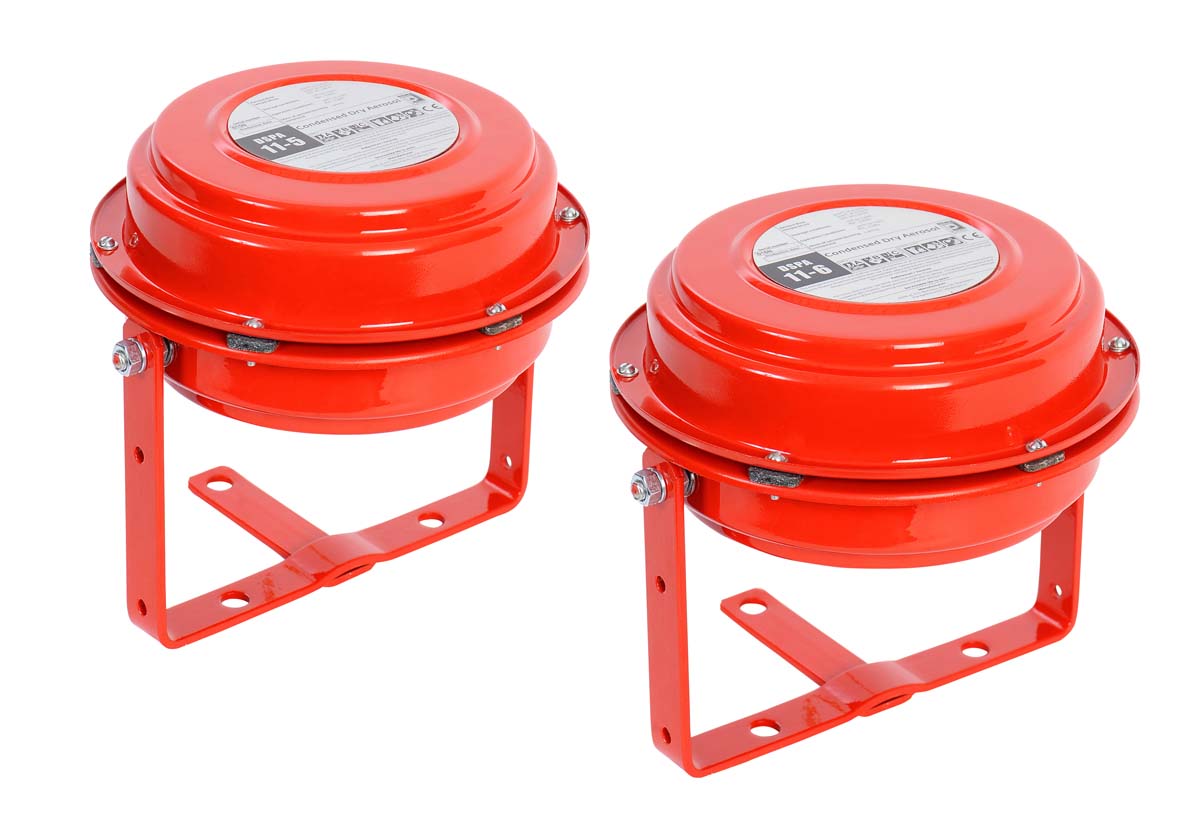

DSPA aerosol generators 11-5 and 11-6 can be used as a part of a highly effective fire extinguishing system. A DSPA generator is non-pressurized and is installed inside a room or compartment that requires protection. After activation, an aerosol cloud is generated, which expanse volumetrically, flooding the space and extinguishing the fire. The DSPA generators are mainly designed to use in normally unoccupied and unoccupied areas and are effective on class A, B, C fires.

Application

The DSPA generators 11-5 and 11-6 are recommended for the protection of semi large compartments such as storage rooms, archives, technical rooms and server rooms.

Model 11-5 11-6
Dimensions Ø217 x 104 mm
Ø8.5”x 4.09”
Ø217 x 104 mm
8.54” x 4.09”
Part number 100015 100016
Total weight 4 kg 8.8 lbs 4,5 kg
9.9 lbs
Compound weight 1,4 kg 2,3 kg
Volume coverage 13,63 m³
481 ft³
22,40 m³
791 ft³
Discharge time 50 sec 40 sec
Activation, current Screw-in starter, 1.3A
Operation conditions -40°C to 75°C/ -40°F to 167°F Up to 95% RH
Colour Standard RAL 3000, other colours upon request
