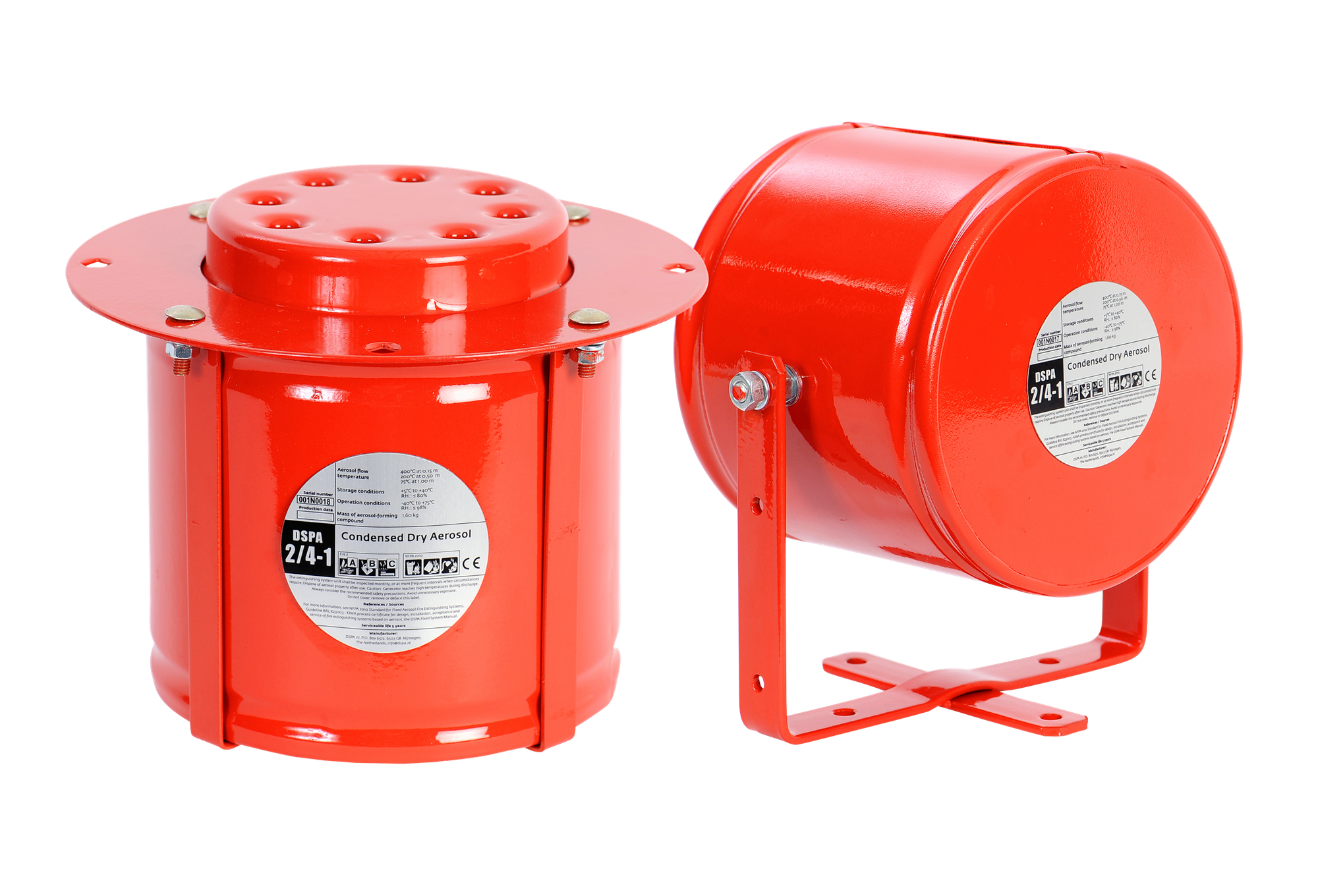

DSPA 2-4-1 AEROSOL GENERATOR

Properties

  • Exceptional effective non-toxic fire extinguishing agent
  • Uniquely easy to install and Maintain
  • Tested as per EN 15276-1, NEN-ISO 15779, UL 2775 and BRL K23001
  • Approved by EPA for SNAP listing
  • Ecologically safe and environmentally friendly (O.D.P.=0, G.W.P.=0)
  • Very cost efficient

Description

DSPA aerosol generator 2-4-1 can be used as a part of a highly effective fire extinguishing system. A DSPA generator is non-pressurized and is installed inside a room or compartment that requires protection. After activation, an aerosol cloud is generated, which expanse volumetrically, flooding the space and extinguishing the fire. The DSPA generators are mainly designed to use in normally unoccupied and unoccupied areas and are effective on class A, B, C fires.

Application

The DSPA generators 2-4-1-1 (Built-in) and 2-4-1-4 (Built-up) are recommended for the protection of semi large compartments such storage rooms, archives, technical rooms and server rooms.

Model 2-4-1
Dimensions 167 x 175
6.57"x 6.89"
Part number 100001 (flange), 100002 (bracket)
Total weight 4,6
10.141
Compound weight 1,6 kg. / 3.527 lbs
Volume coverage 15,85
559.74
Discharge time 48-53 sec.
Activation, current Built-in starter, 1.3A
Operation conditions -40°C to 75°C/ -40°F to 167°F Up to 95% RH
Colour Standard RAL 3000, other colours upon request
