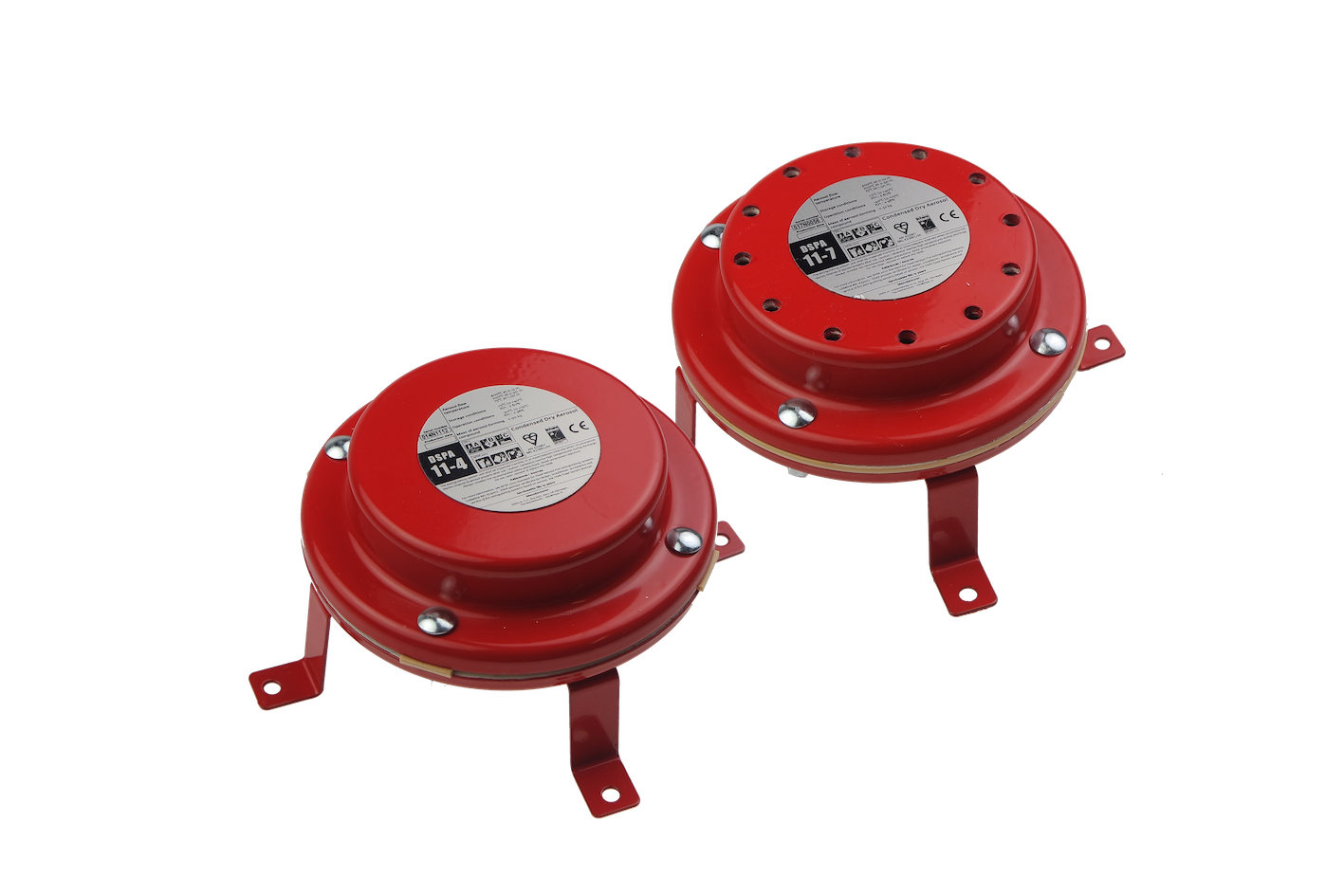

DSPA 11-4, 11-7 AEROSOL GENERATOR

Properties

  • Exceptional effective non-toxic fire extinguishing agent
  • Uniquely easy to install and Maintain
  • Tested as per EN 15276-1, NEN-ISO 15779, UL 2775 and BRL K23001
  • Approved by EPA for SNAP listing
  • Ecologically safe and environmentally friendly (O.D.P.=0, G.W.P.=0)
  • Very cost efficient

Description

DSPA aerosol generator 11-4 and 11-7 can be used as a part of a highly effective fire extinguishing system. A DSPA generator is non-pressurized and is installed inside a room or compartment that requires protection. After activation, an aerosol cloud is generated, which expanse volumetrically, flooding the space and extinguishing the fire. The DSPA generators are mainly designed to use in normally unoccupied and unoccupied areas and are effective on class A, B, C fires.

Application

The DSPA generator 11-4 and 11-7 is recommended for the protection of semi large compartments such as storage rooms, archives, technical rooms and server rooms.

Model 11-4 11-7
Dimensions Ø165 x 72 mm
Ø6.5”x 2.8”
Ø165 x 72 mm
Ø6.5" x 2.83"
Part number 100014 100017
Total weight 2 kg
4.4 lbs
2,1 kg
4.63 lbs
Compound weight 0,9 kg 520 gr
Volume coverage 8,76 m³
309 ft³
5,06 m³
179 ft³
Discharge time 19-31 sec 30-50 sec
Activation, current Built-in starter, 1.3A
Operation conditions -40°C to 75°C/ -40°F to 167°F Up to 95% RH
Colour Standard RAL 3000, other colours upon request
